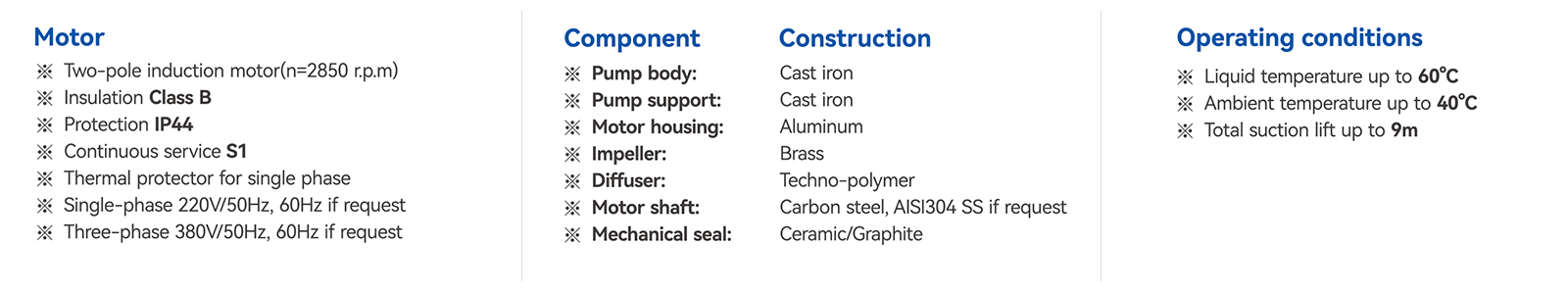

Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
※ Single-phase 220V/50Hz, 60Hz if request
※ Three-phase 380V/50Hz, 60Hz if request
Operating conditions
※ Liquid temperature up to 60℃
※ Ambient temperature up to 40℃
※ Total suction lift up to 9m
Component
※ Pump body: Cast iron
※ Pump support: Cast iron
※ Motor housing: Aluminum
※ Impeller: Brass
※ Diffuser: Noryl
※ Motor shaft: Carbon steel, AISI304 SS if request
※ Mechanical seal: SIC/Graphite
