FLOW
0.3 / 8.4 mc / h
HEAD
18 / 54 m
POWER
0.55 / 1.5 kW
Operating conditions
Liquid temperature: 0 °C to +35 °C.
Ambient temperature up to 40° C.
Maximum permissible pressure in the pump casing: 8 bar.
Continuous duty.
Applications
For drawing water out of a well.
For lifting water containing air or other gases.
For increasing network pressure (follow local specifications).
For increasing water pressure from flooded suction applications.
For garden use.
For washing with a jet of water.
Συνδεθείτε για να δείτε τιμήCALPEDA, Self-priming, Surface pumps

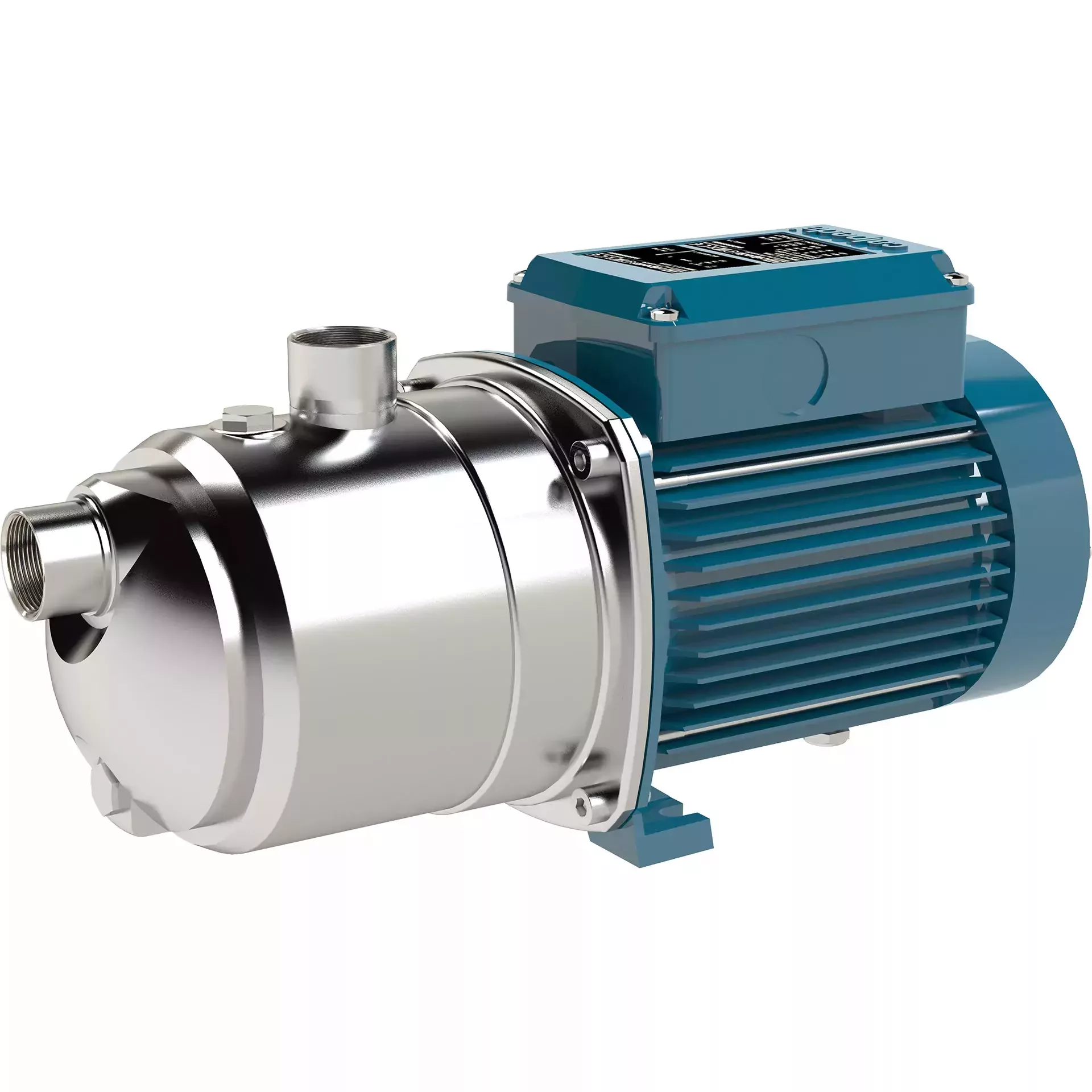

NGX Self-priming stainless steel jet pumps
Close-coupled self-priming shallow well jet pumps with builtin ejector.
NG, NGL: version with pump casing in cast iron.
NGX: version with pump casing in stainless steel (AISI 304).
B-NG: version with pump casing and lanter bracket in bronze. (the pumps are supplied fully painted).
