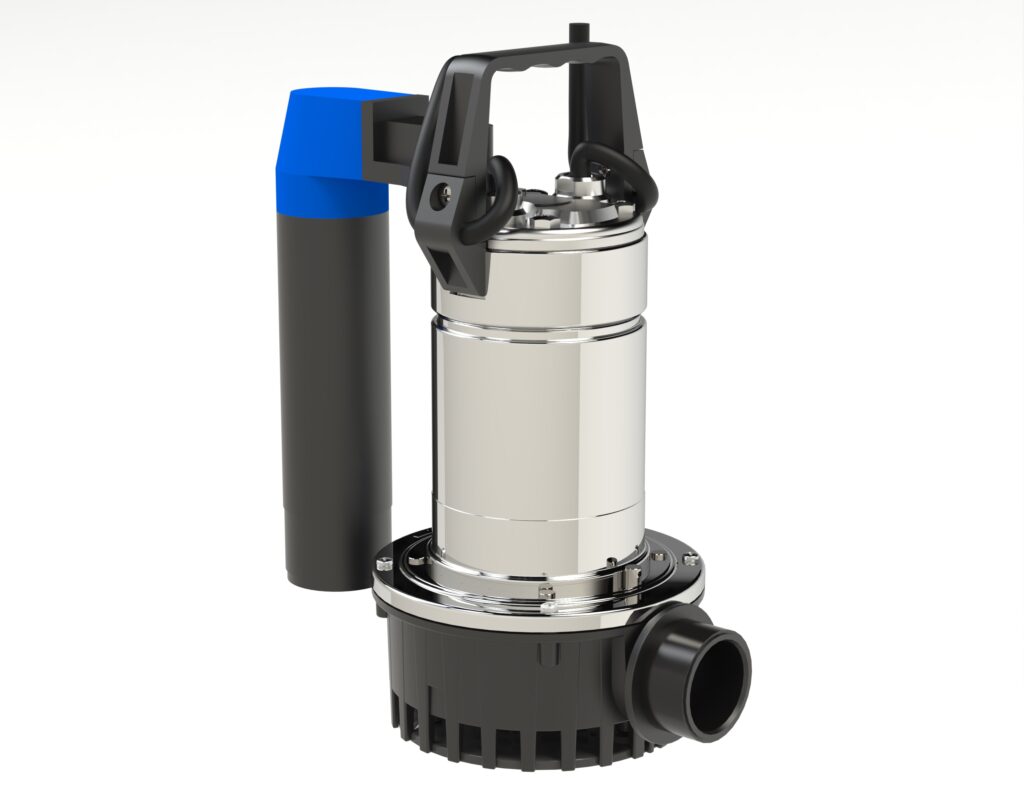

SUBMERSIBLE PUMP CALPEDA, GM 10-8 – RAINWATER-UNREFINED WATER

Submersible Drainage Pump

Submersible drainage pump made from composite polymers specifically developed for this product. Features a double shaft mechanical seal with an oil chamber, ensuring durability and leak-proof operation. Its compact size combined with excellent performance makes it suitable for a wide range of applications, with a flow rate of up to 233 liters per minute. Equipped with a float switch for automatic start and stop functionality, providing convenience and ease of use.

Technical Specifications

TECHNICAL SPECIFICATIONS

Pump Body: PP+30FV Polypropylene
Motor Housing: Stainless Steel AISI 304
Impeller: PPO-GF20 (Noryl)
Shaft: Stainless Steel AISI 430
Mechanical Seal: Alumina/Graphite/NBR
Motor: Single-phase with thermal protector, IPX8 protection, insulation class F, power cable H05RN-F, 3G0.75 mm² with CEI-UNEL 47166 plug, 5 meters in length.
Integrated Float Switch.
Pumped Liquid Temperature: Continuous operation at 35 °C (with submerged motor).
Maximum Submersion Depth: 5 meters.

APPLICATIONS

For clean water containing suspended solids up to 8 mm.
Suitable for draining flooded rooms, irrigation, etc.

MAXIMUM PERFORMANCE

Head (Manometric): 7.5 meters
Flow Rate: 14 cubic meters per hour.
